ISO 9001·IATF 16949·ISO 13485·UL Certified
PCB Fabrication, and One-Stop PCBA When You Need It
Our core business is making circuit boards: multilayer, HDI, flex and special-material construction for engineering teams in more than 50 countries. Add sourcing, SMT assembly and test, and one supplier delivers the finished assembly.
- FR-4 up to 40 layers

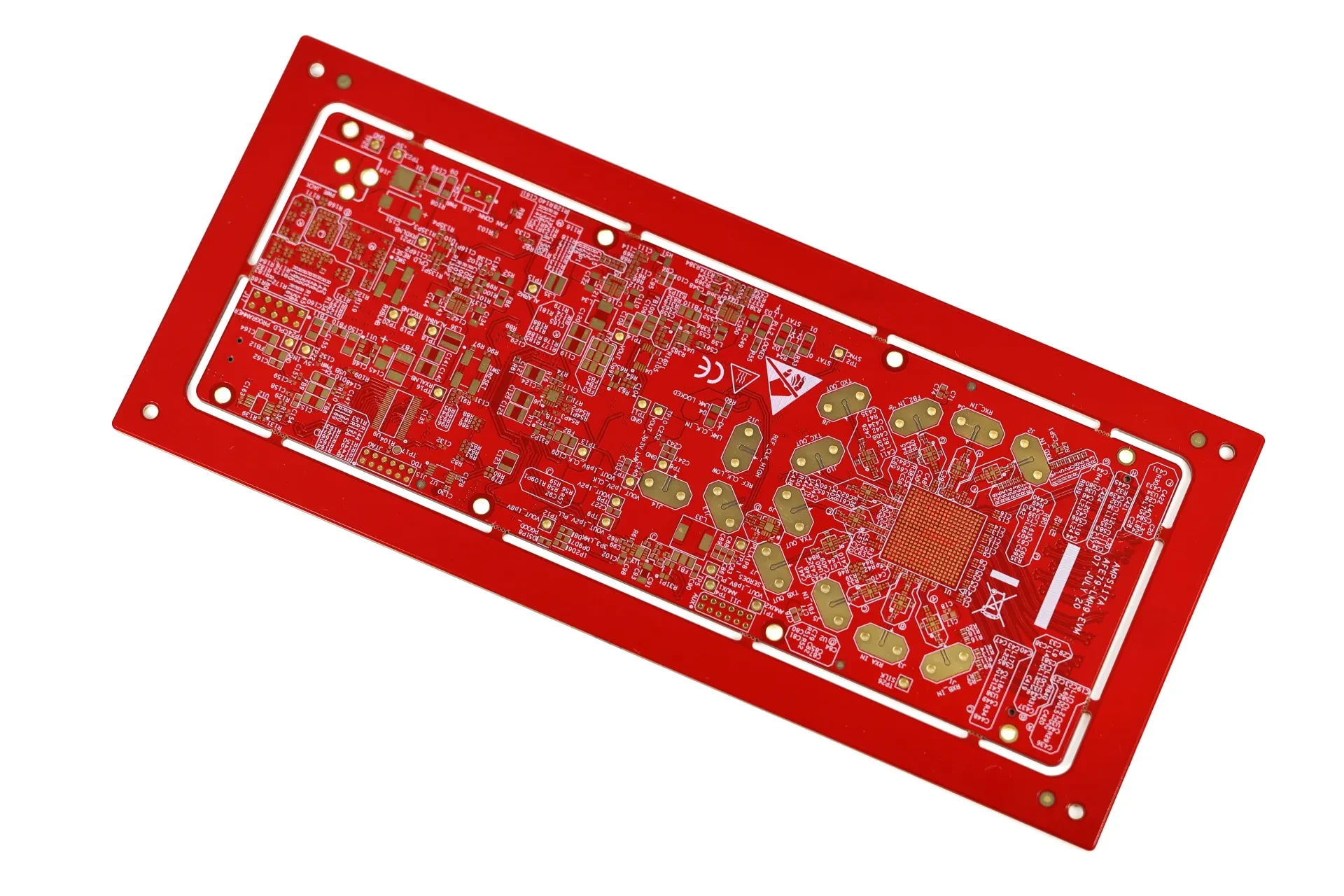

- HDI any-layer interconnect

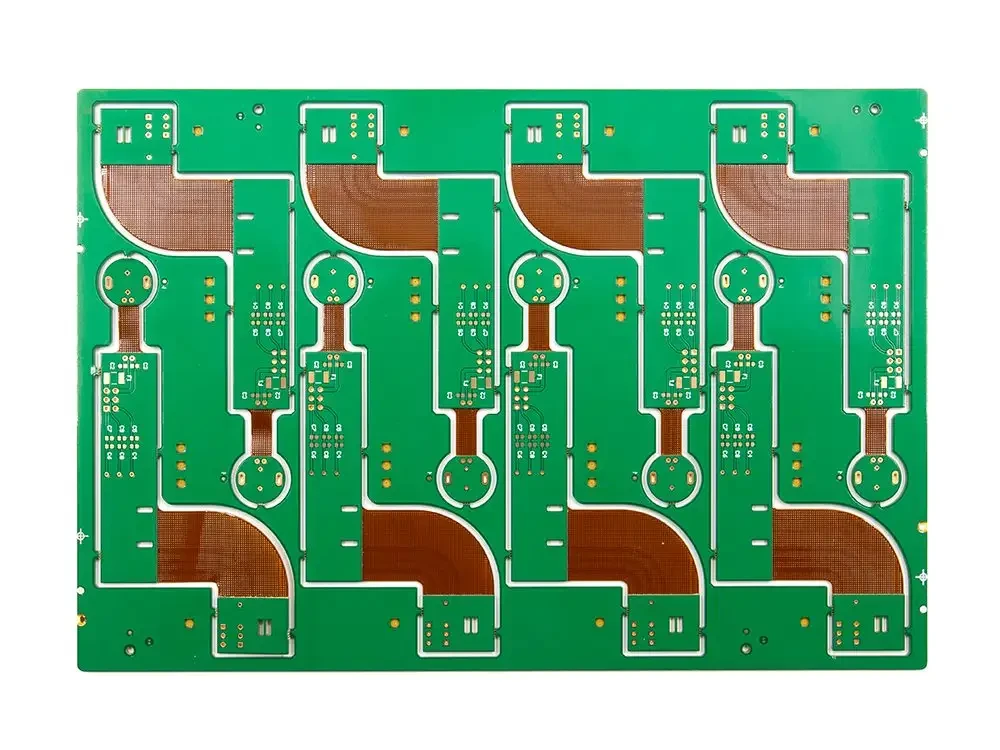

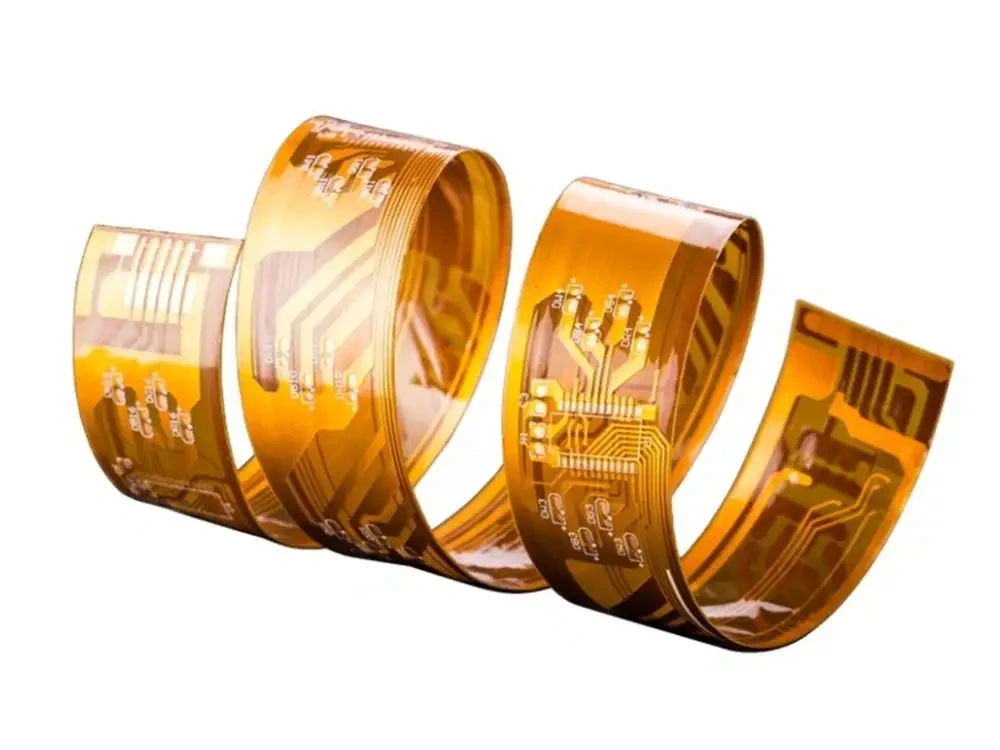

- Flex & rigid-flex construction

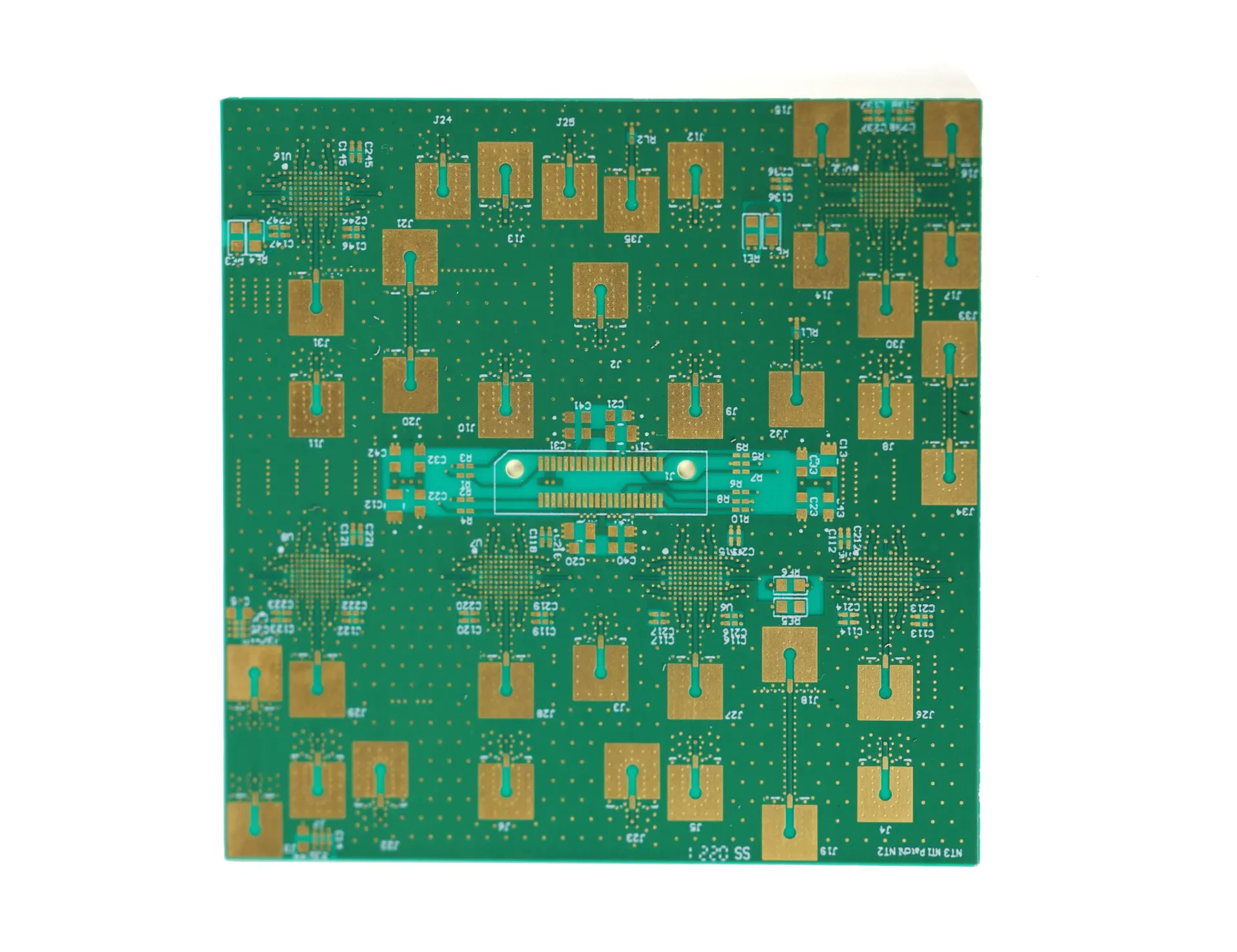

- Rogers / Taconic high-frequency

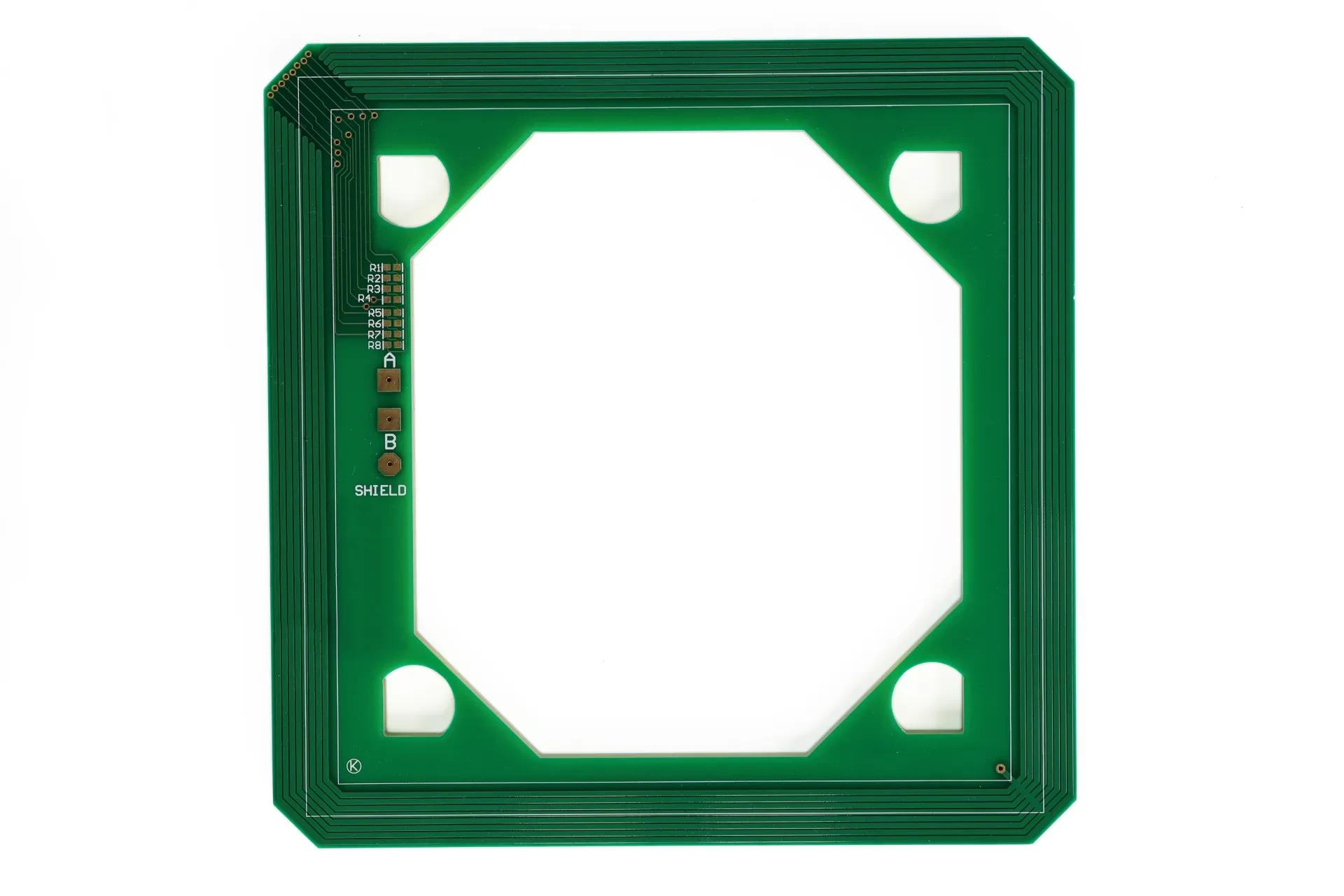

- Heavy copper 3oz - 12oz
- Aluminium & ceramic base
- Turnkey PCBA assembly
A full PCB product range, from standard boards to special materials

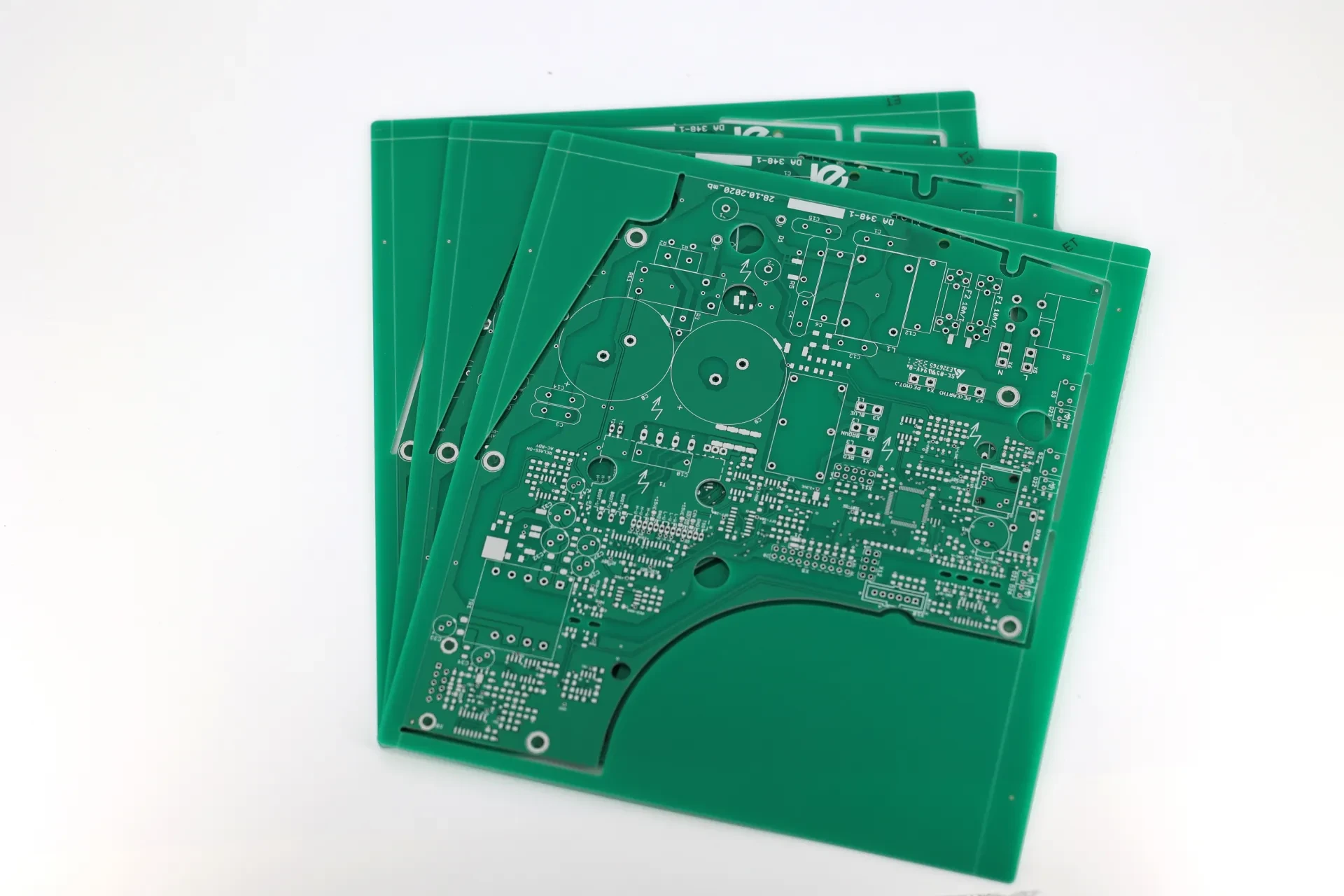

Single and double-sided boards through 40-layer multilayer, HDI, flex, rigid-flex, high-frequency and heavy copper construction.
PCB capabilities in numbers
The parameters engineers ask for most. Full tolerances, surface finishes and the materials library are on the capabilities page.
| Layer count | 1 - 40 layers (IC substrate up to 64) |
|---|---|
| Board thickness | 0.2 - 6.0 mm |
| Min trace / space | 4 / 4 mil standard, 3 / 3 mil advanced, 2 / 2 mil fine-line |
| Min mechanical hole | 0.2 mm |
| Min laser hole | 0.1 mm |
| Copper weight | 0.5 oz - 12 oz |
| Max board size | 600 × 570 mm (up to 1250 × 570 mm) |
| Min board size | 5 × 5 mm |
| Board thickness tolerance | ±10% (IPC-6012 class 2) |

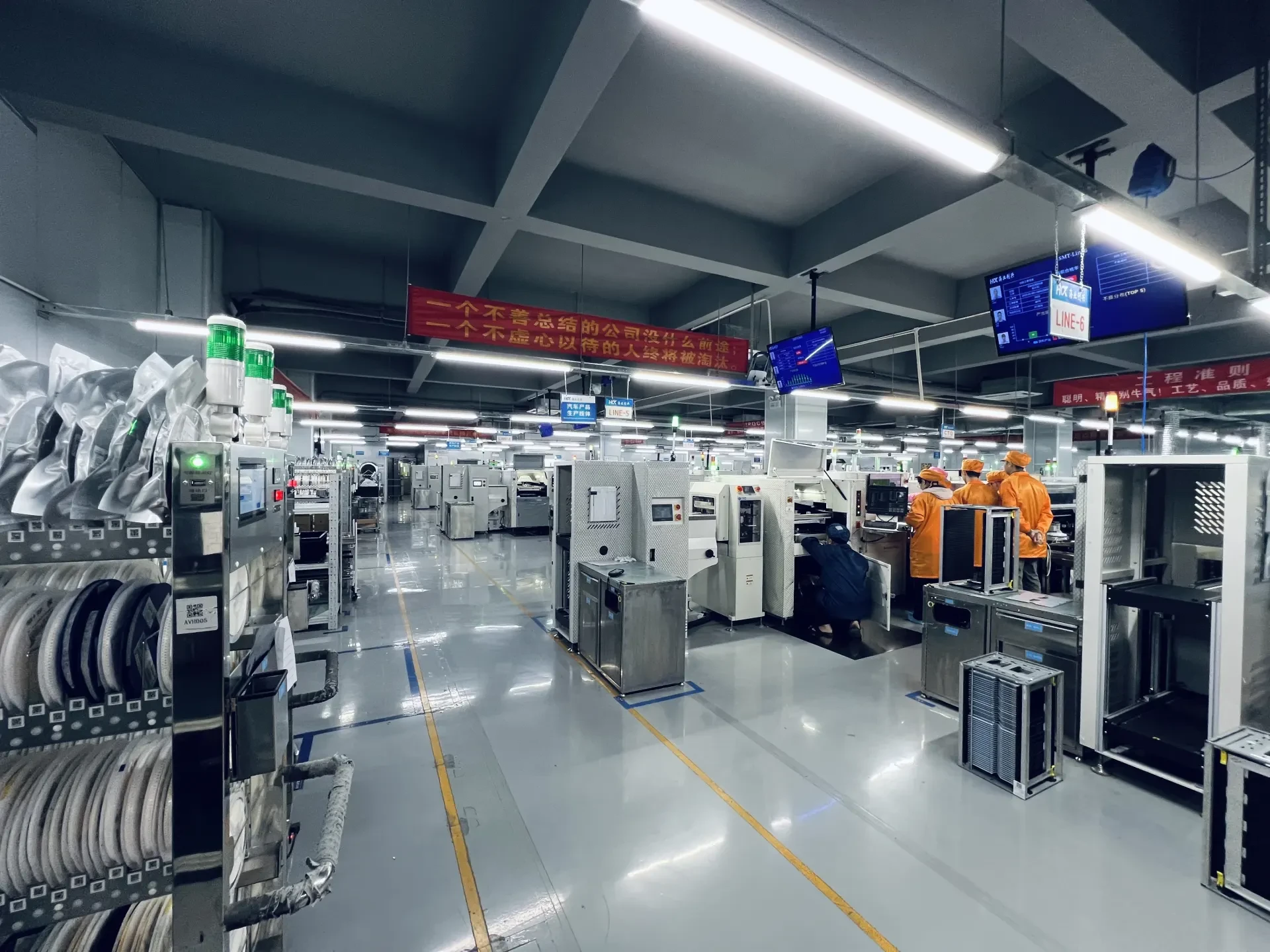

One plant in the China Electronics Technology City, Mianyang
All fabrication runs from a single site in Mianyang, Sichuan, covering double-sided, multilayer, HDI, special materials, COB and communication module boards. Prototypes and volume orders follow the same process route and the same inspection standard.
Powering electronics across demanding sectors

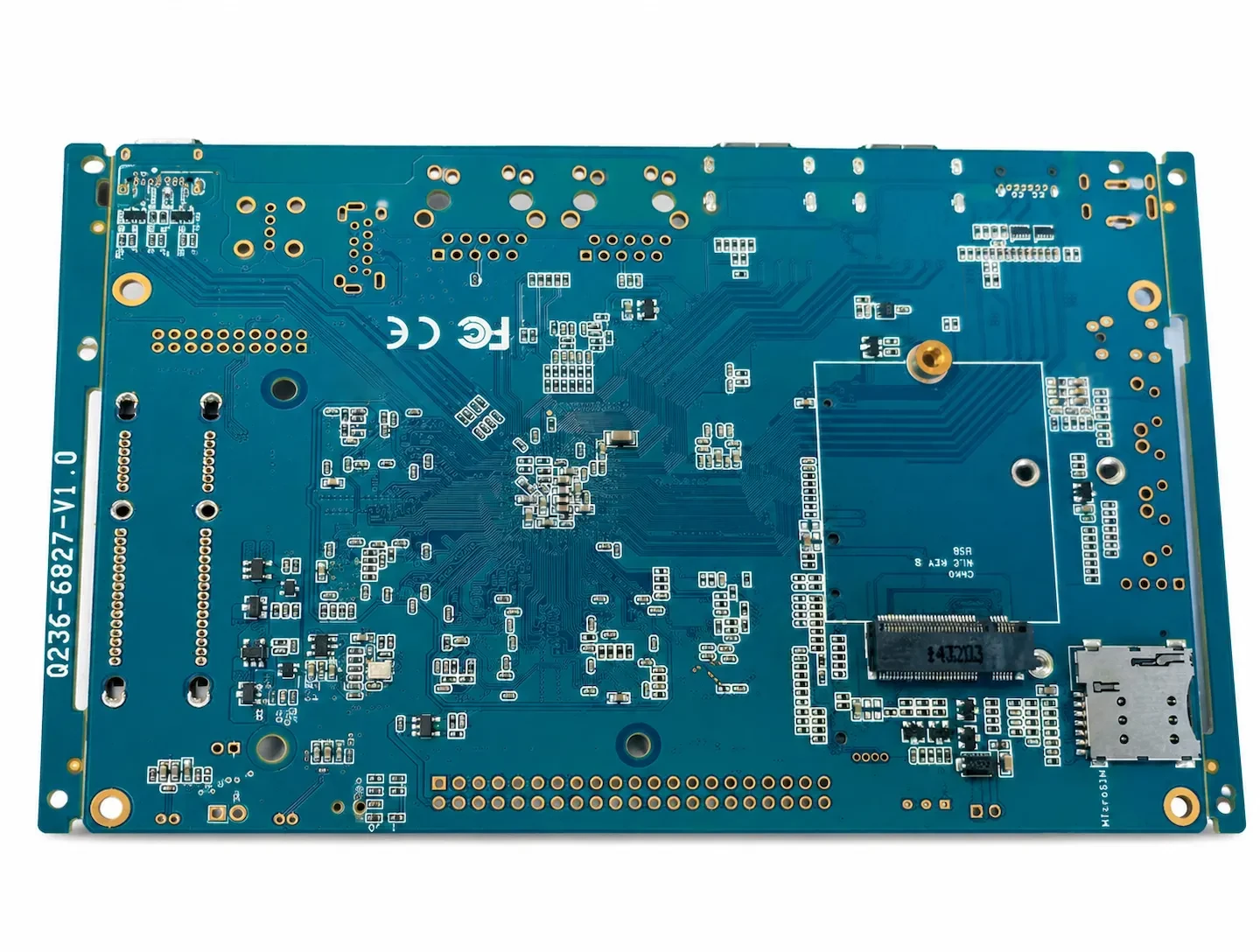

From automotive and medical to RF communications, each sector is built to its own standard and documentation requirement.
From quote to delivery in four steps
Upload & Quote
Send your Gerber or ODB++ files. Simple boards are quoted within 1 hour, complex builds within 24 hours.
Engineering Review
Senior engineers run DFM checks on stack-up, trace width, annular ring and drill capability before release.
Manufacturing
Automated fabrication lines with in-process inspection at imaging, lamination, drilling and plating.
Test & Ship
Full electrical testing and final QC, then worldwide tracked shipping with a complete inspection report.
More than boards, we support your whole product
PCB fabrication is our core business, and the same team carries it through sourcing, assembly, box build and test under one project owner.
Reliable Quality
Full-process quality control from incoming material to outgoing inspection, with components sourced from authorised channels and replacement arranged promptly when a problem is confirmed.
Competitive Pricing
A stable long-term supply chain and a transparent price structure, with volume tiers quoted against your annual forecast rather than repriced order by order.
High Flexibility
Rapid prototyping, customised process routes and material substitutions, with the same line handling samples through to mass production.
Responsive Service
One engineer owns your project from quotation to shipment, supporting you through prototype, pilot run and production phases.
From product development to a packed, tested unit
Six stages, one supplier. Boards never leave the site to be populated, tested and shipped back, which removes the hand-off where most quality and schedule problems appear.
- Stage 01
Electronics Product Development
Hardware · Firmware · Enclosure design
- Stage 02
PCB Manufacturing
Rigid · Flex · HDI · Metal core
- Stage 03
Components Procurement
Capacitors · ICs · Isolators · Sensors
- Stage 04
Turnkey PCB Assembly
SMT · DIP · Reflow soldering
- Stage 05
Box Building
Housing · Battery · Display · Cable
- Stage 06
Quality Control
SPI · AOI · FAI · BGA rework
- ISO 9001
- ISO 14001
- IATF 16949
- ISO 13485
- UL
- RoHS
- REACH
Engineering notes on PCB process and materials

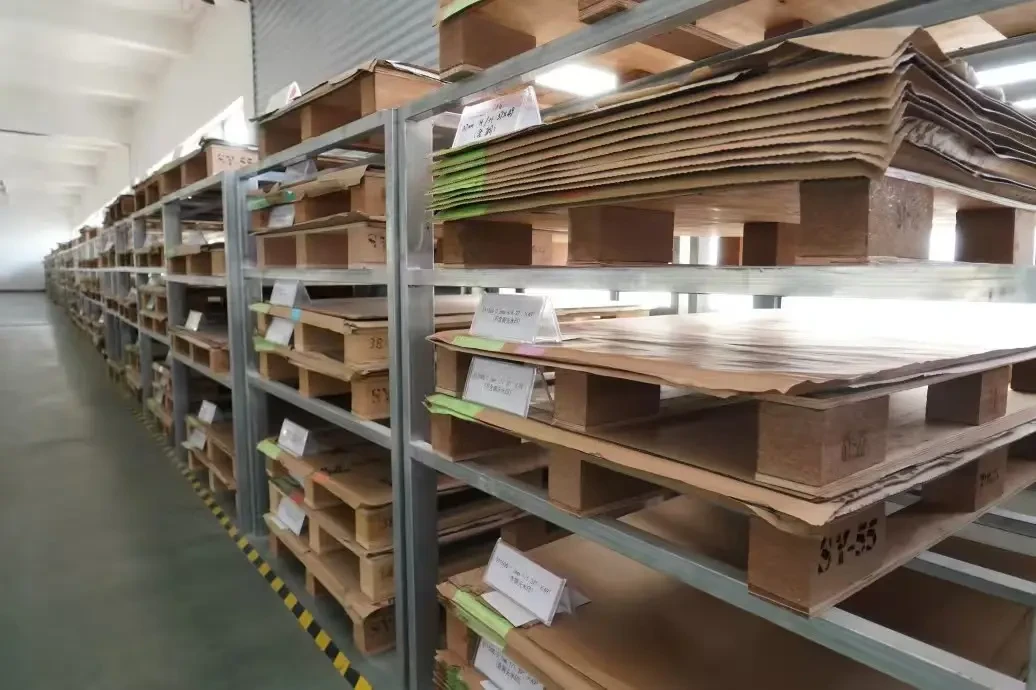

The parameters our engineers check on your data, written up as reference articles: laminate Tg, surface finishes, HDI stack-ups, impedance control and assembly readiness.
Frequently asked questions
Answers to the questions overseas buyers ask before placing a first order.
Ready to start your project?
Send your Gerber files for a quote. Simple boards are quoted within 1 hour, complex builds within 24 hours.
